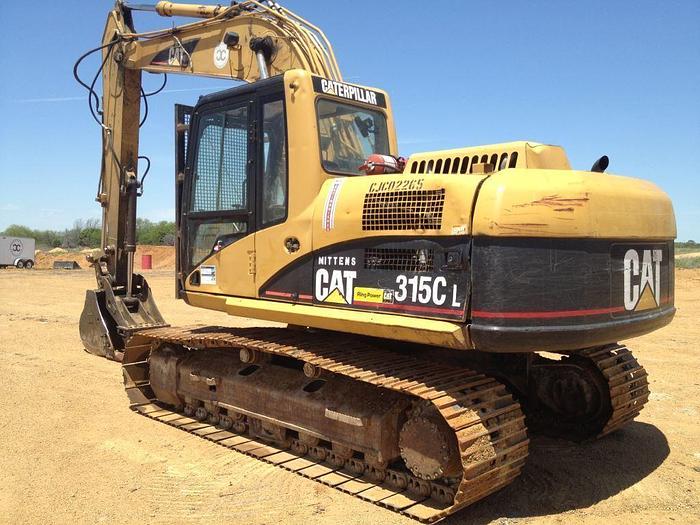

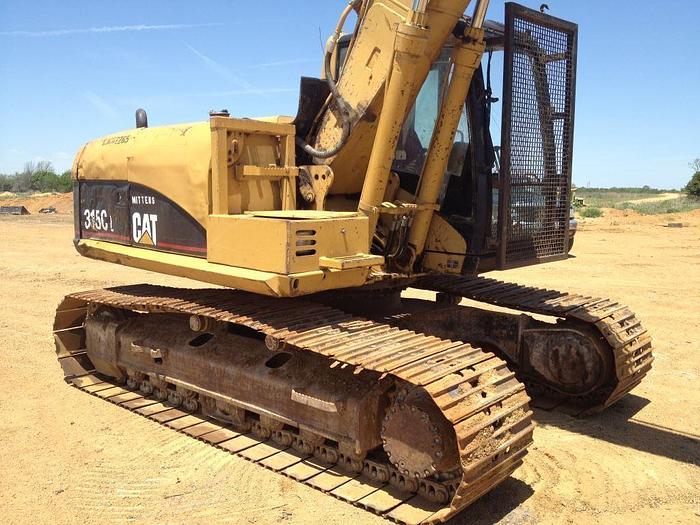

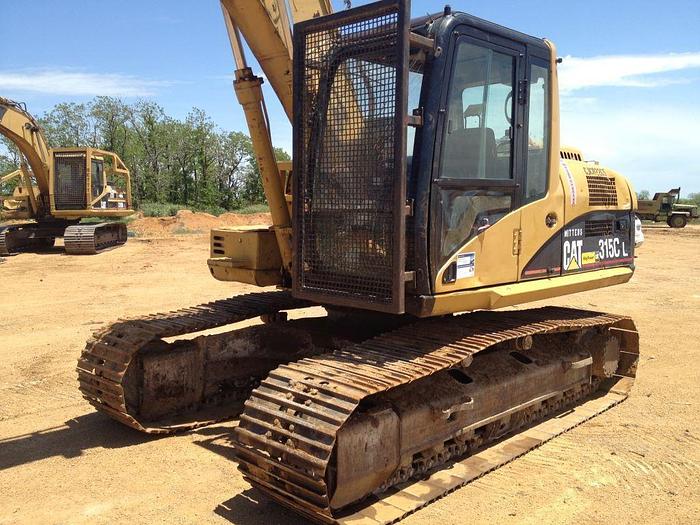

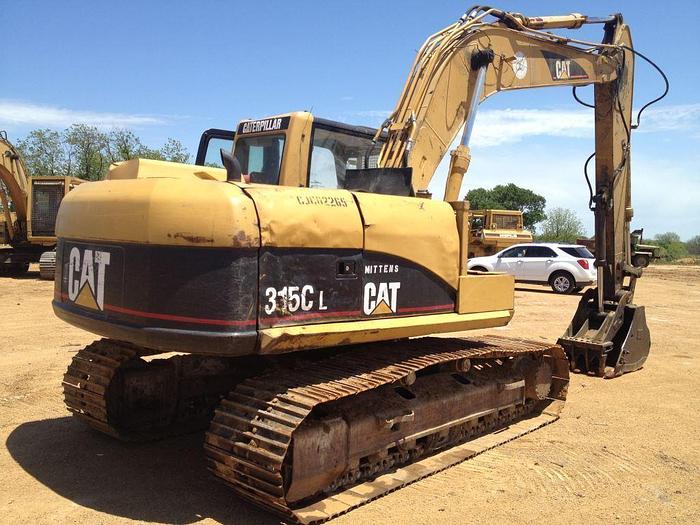

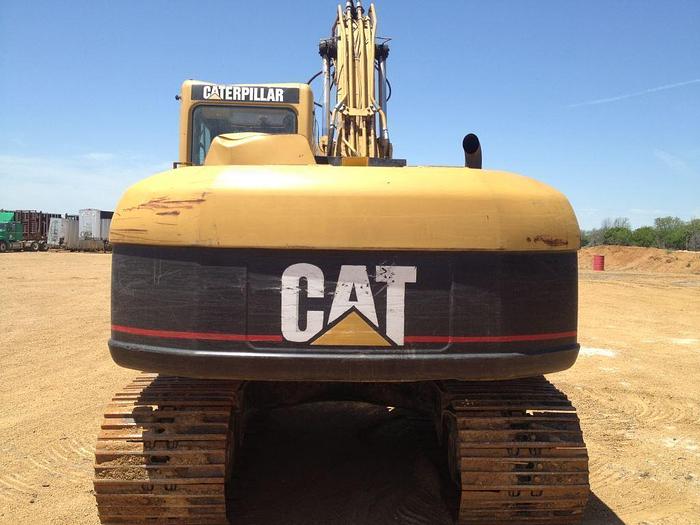

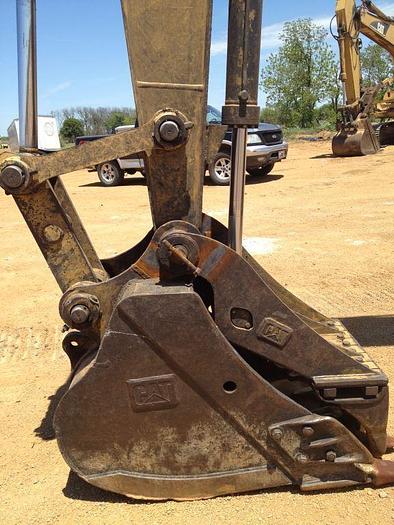

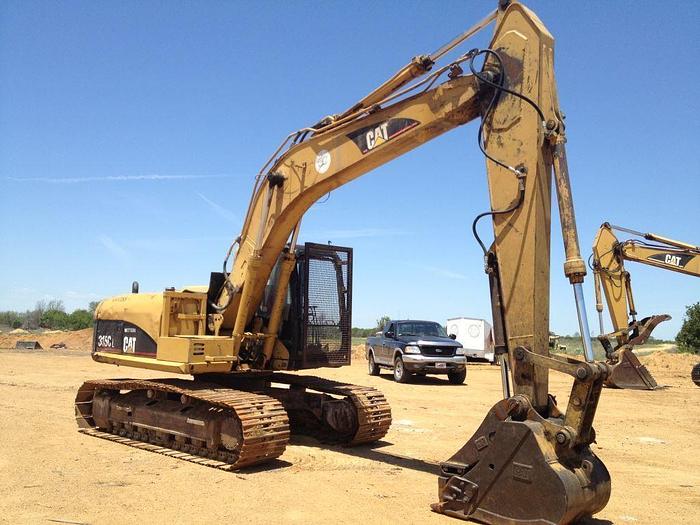

2005 CATERPILLAR 315CL - EXCAVATORS
2005 CATERPILLAR 315CL - EXCAVATORS
or
Call +1 (956) 465-1981
Specifications
| Manufacturer | CATERPILLAR |
| Model | 315CL |
| Year | 2005 |
| Condition | Used |
| Stock Number | 933 |
| Status date | 6/3/2013 |
| SMU/Hours | 9200 |
| Availabilty Status | Available |
| ENGINE MAKE | CAT 3046T |
| ENGINE HP | 110 hp 82 kw |
| CARRIAGE | CRWLR |

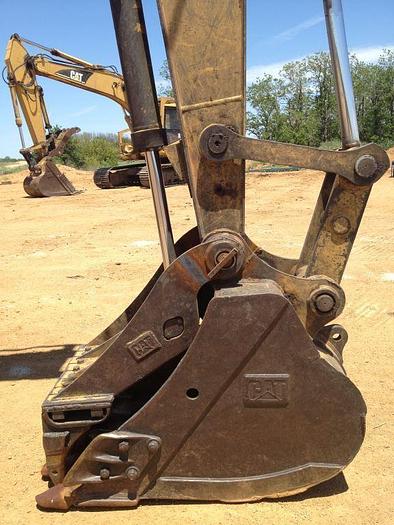

| BUCKET C.Y | 1.1 yd3 0.86 m3 |
| WEIGHT | 36930lb 16750 kg |
| FUEL TANK | 75 Gal 285 lts |
| POWER MEASURED @ | 1950 rpm |
| DISPLACEMENT | 259 cu in 4.3 L |
| COOLING SYSTEM FLUID CAPACITY | 4.6 gal 17.5 L |
| HYDRAUILC SYSTEM FLUID CAPACITY | 42.8 gal 162 L |
| ENGINE OIL CAPACITY | 4.6 gal 17.5 L |
| SWING DRIVE FLUID CAPACITY | 0.8 gal 3 L |
| OPERATING VOLTAGE | 24 V |
| HYDRAULIC SYSTEM RELIEF VALVE PRESSURE | 4340 psi 29900 kPa |
| HYDRAULIC PUMP FLOW CAPACITY | 33.5 gal/min 127 L/min |
| SWING SPEED | 12.9 rpm |
| SWING TORQUE | 22496 lb ft 30500 Nm |
| SHOE SIZE | 24 in 600 mm |
| GROUND PRESSURE | 4.5 psi 31 kPa |
| MAX TRAVEL SPEED | 3.4 mph 5.5 km/h |
| DRAWBAR PULL | 24720 lb 110 kN |

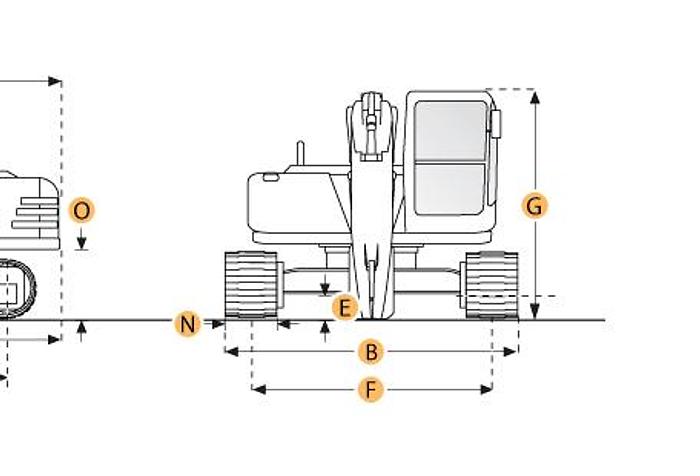

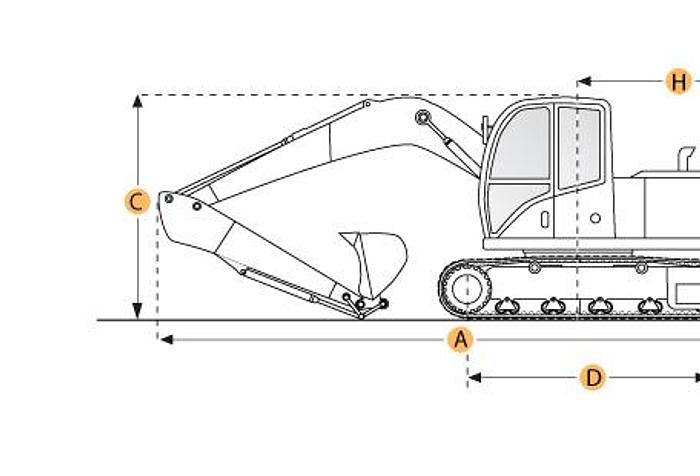

| TRACK GAUGE | 6.5 ft in 1990 mm |
| Width to outside of tracks | 8.5 ft in 2590 mm |
| Height to top of cab | 9.4 ft in 2880 mm |
| Tail swing radius | 8 ft in 2450 mm |
| Length with bucket on ground | 10.4 ft in 3170 mm |
| Shipping length of unit | 27.8 ft in 8470 mm |
| Shipping height of unit | 9.4 ft in 2880 mm |

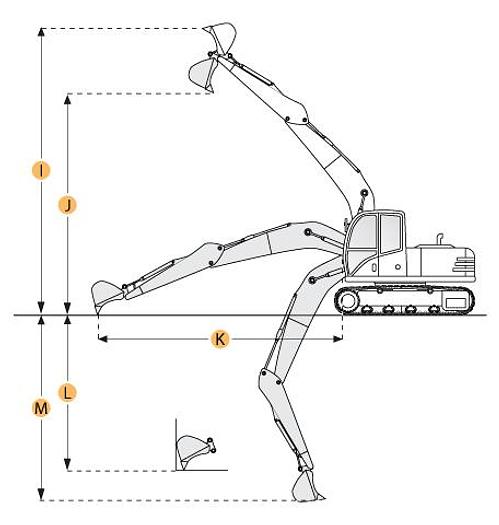

| Max cutting height | 28.7 ft in 8735 mm |
| Max loading height | 20.2 ft in 6150 mm |
| Max reach along ground | 27.6 ft in 8420 mm |
| Max vertical wall digging depth | 16.2 ft in 4930 mm |
| Max digging depth | 18.8 ft in 5705 mm |
| Ground clearance | 1.5 ft in 460 mm |
